    IP67 Multifunctional Handheld Infrared Night Vision Device

    Ask Lasest Price
    Brand Name : Particle
    Model Number : NVD3000
    Payment Terms : T/T
    Price : $17,000
    • Product Details
    • Company Profile

    IP67 Multifunctional Handheld Infrared Night Vision Device

    Upgrade Multifunctional Handheld Infrared Night Vision Device


    APPLICATIONS


    The JP NVD3000 is a versatile binocular handheld uncooled thermal imaging telescope designed to meet diverse user needs. It features a thermal imaging detector and a visible light sensor, allowing for seamless switching between thermal and visible light images. With integrated satellite positioning, laser ranging, and an electronic compass, the JP NVD3000 provides precise self-positioning and target positioning data. This device excels in field observation, surveillance, and target location acquisition, making it ideal for various operational scenarios.

    Technical Parameters


    Product model

    NVD3000

    Infrared

    Mid-Size Vehicle, km

    ≥2.8

    Standing Man, km

    ≥1

    Infrared detection resolution, Pixel@um

    640×512@12um

    Lens focal length, mm

    70

    Infrared FOV, °

    ≥6.3×5.0

    Visible Light

    Mid-Size Vehicle, km

    ≥6.6

    Standing Man, km

    ≥3

    Resolution, Pixel@um

    2592×1944@2.7um

    Focal Length, mm

    105

    Focal Length Adaptation Range, m

    50~∞

    Visible FOV, °

    ≥3.2×2.4

    Defog

    Support

    Laser Ranging

    Minimum Range, m

    ≤50

    Maximum Range, km

    ≥6

    Precision, m

    ≤2

    Repeat Frequency, Hz

    ≥0.5

    Ranging Logic

    Select to display the first or last target capability measured;

    Laser Wavelength

    Human eye safety band;

    Positioning Orientation

    Positioning Precision, m

    ≤7(CEP), ≤10(PE)

    Magnetic Azimuth, °

    ≤0.5(RMS)

    Target Positioning Accuracy, m

    at 2km of the distance≤20(CEP)

    Other

    Diopter, SD

    -4~+4

    Digital zoom, ×

    1~4

    Working Time(Room temperature), h

    ≥10

    Memory Storage, G

    32

    Operating Temperature,

    -40~+55

    IP Grade

    IP67

    Weight, kg

    ≤1.6


    * These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.


    Product Details



    Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized

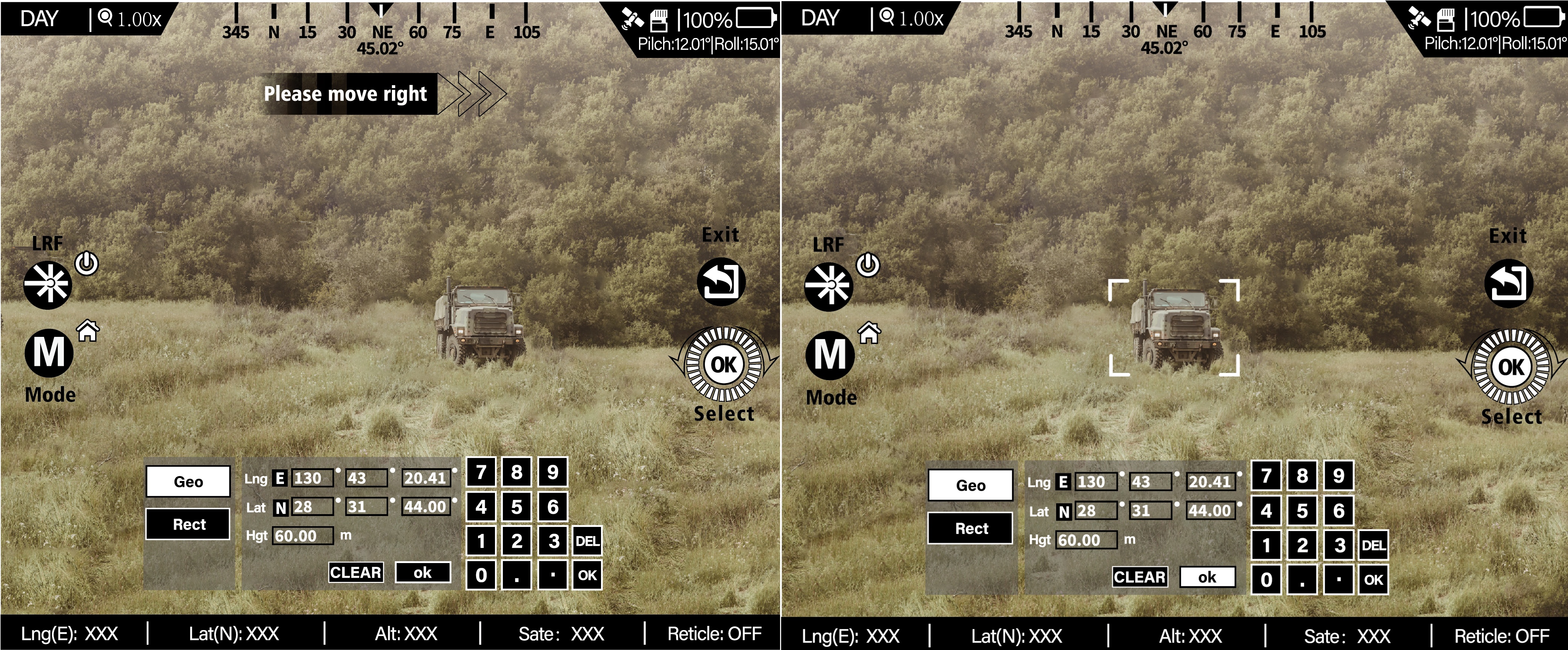

    Supports guided search function after entering target coordinates


    PIP


    Supports fog penetration function in visible light (color, black and white) observation mode
    Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target

    Relative ranging function supports relative distance calculation between targets
